Cable was pulled during construction phase, when walls were partially opened. Jacks are all on 1st floor of office, network closet is in basement.

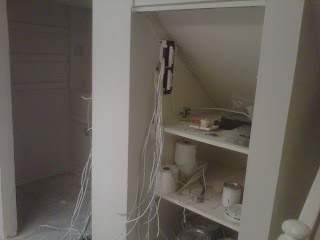

|Before wires cut down into 12 port panel.|

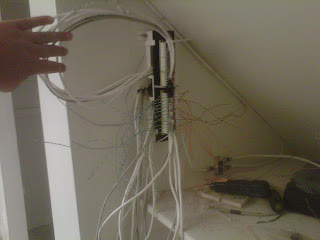

|Wider angle before wires cut down.|

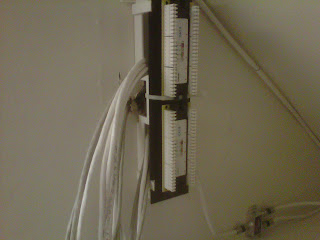

|Close up of 12 port panel before wires cut down.|
|1/2 way cut down (top half done, bottom half waiting to be cut down.|
|Close up 1/2 way cut down.|
|Panel cut down, and installed.|
|Rest of cabling terminated. 2 RC2A relays for door releases,|
1 jack for fax line to connect to cable dial tone,
PAP2 to provide hot dialer for door phones,
double jack to connect lines from PAP2 to door phones and relays.

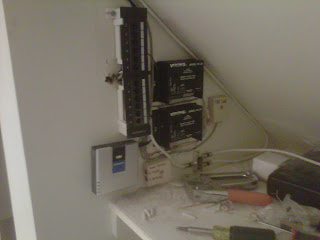

|Close up of all hardware mounted.|
EDIT - The customer had the router at the location today so I returned to mount the router and modem, and connect the 3 IP phones that I brought for the installation. The IT guy who is bringing in their PCs and server is going to have to bring in a switch if they plan on using all of the installed jacks.
|Router and modem mounted.|
|Closer view of router/modem mounted and connected.|
|Wide angle of completed job.|
